PostgreSQL逻辑复制

--创建两个逻辑复制槽，分别使用logical_test和logical_raw

lzldb=# select pg_create_logical_replication_slot('logical_test','test_decoding');

 pg_create_logical_replication_slot

------------------------------------

 (logical_test,0/1756F50)

lzldb=# select pg_create_logical_replication_slot('logical_raw','decoder_raw');

 pg_create_logical_replication_slot

------------------------------------

 (logical_raw,0/1756F88)

--只创建上游，slot是f状态

lzldb=# select * from pg_replication_slots;

  slot_name  |    plugin     | slot_type | datoid | database | temporary | active | active_pid | xmin | catalog_xmin | restart_lsn | confirmed_flush_lsn | wal_status | safe_wal_size

--------------+---------------+-----------+--------+----------+-----------+--------+------------+------+--------------+-------------+---------------------+------------+---------------

 logical_test | test_decoding | logical   | 16385 | lzldb    | f         | f      |            |      |         558 | 0/1766878   | 0/17668B0           | reserved   |

 logical_raw | decoder_raw   | logical   | 16385 | lzldb    | f         | f      |            |      |         557 | 0/1756F50   | 0/1756F88           | reserved   |

--创建一张表

lzldb=# create table tdecoder222(a int,b varchar(10));

CREATE TABLE

--尝试获得这个ddl

lzldb=# SELECT * FROM pg_logical_slot_get_changes('logical_raw', NULL, NULL, 'include-xids', '0');

ERROR:  option "include-xids" = "0" is unknown

CONTEXT:  slot "logical_raw", output plugin "decoder_raw", in the startup callback

lzldb=# SELECT * FROM pg_logical_slot_get_changes('logical_test', NULL, NULL, 'include-xids', '0');

    lsn   | xid |  data

-----------+-----+--------

 0/17669C8 | 558 | BEGIN

 0/1776778 | 558 | COMMIT

--能看出decoder_raw完全没有解析ddl，logical_test只是获取了ddl的事物，没有ddl语句本身，相当于没解析ddl

--插入一条数据

lzldb=# insert into tdecoder222 values(1,'lzl');

INSERT 0 1

lzldb=# select * from pg_logical_slot_peek_changes('logical_test',null,null);

    lsn   | xid |                                  data

-----------+-----+---------------------------------------------------------------------------

 0/1776890 | 560 | BEGIN 560

 0/1776890 | 560 | table public.tdecoder222: INSERT: a[integer]:1 b[character varying]:'lzl'

 0/1776900 | 560 | COMMIT 560

lzldb=# select * from pg_logical_slot_peek_changes('logical_raw',null,null);

    lsn   | xid |                          data

-----------+-----+----------------------------------------------------------

 0/1776890 | 560 | INSERT INTO public.tdecoder222 (a, b) VALUES (1, 'lzl');

--test_decoding解析了事物

--decoder_raw把事务解析成了sql语句

--配置免密登陆

[pg@lzl ~]$ vi .pgpass

[pg@lzl ~]$ cat .pgpass

lzl:5410:lzldb:pg:pg

[pg@lzl ~]$ chmod 0600 .pgpass

--启动pg_recvlogical

[pg@lzl ~]$ pg_recvlogical -h lzl -p 5410 -d lzldb -U pg --slot=logical_raw --start -f recv.sql &

[pg@lzl ~]$ ps -ef|grep recv|grep -v grep

pg        7747 7355  0 21:40 pts/3    00:00:00 pg_recvlogical -h lzl -p 5410 -d lzldb -U pg --slot=logical_raw --start -f recv.sql

lzldb=# insert into tdecoder222 values(2,'qwe');

INSERT 0 1

lzldb=# update tdecoder222 set b='asd' where a=2;

UPDATE 1

[pg@lzl ~]$ tail -2f recv.sql

INSERT INTO public.tdecoder222 (a, b) VALUES (2, 'qwe');

--update没有正确解析

--给表加主键

lzldb=# alter table tdecoder222 add primary key(a);

ALTER TABLE

lzldb=# insert into tdecoder222 values(100,'lzl1');

INSERT 0 1

lzldb=# insert into tdecoder222 values(200,'lzl2');

INSERT 0 1

lzldb=# update tdecoder222 set b='lzlupdate' where a=200;

UPDATE 1

[pg@lzl ~]$ tail -3f recv.sql

INSERT INTO public.tdecoder222 (a, b) VALUES (100, 'lzl1');

INSERT INTO public.tdecoder222 (a, b) VALUES (200, 'lzl2');

UPDATE public.tdecoder222 SET a = 200, b = 'lzlupdate' WHERE a = 200;

查看表的复制标识：
select relname,relreplident from pg_class where relname='tabname1';
当表的复制标识是i时，查看索引是否是复制标识
\d tabname
select rel.relname,idx.indisreplident from pg_index idx ,pg_class rel where idx.indexrelid=rel.oid and relname='idx_1';

ALTER TABLE tab1REPLICA IDENTITY { DEFAULT | USING INDEX index_name | FULL | NOTHING };

lzldb=# create table tab_idx(a int,b varchar(10));

CREATE TABLE

lzldb=# select relname,relreplident from pg_class where relname='tab_idx';

 relname | relreplident

---------+--------------

 tab_idx | d

lzldb=# create unique index idx_1 on tab_idx(b);

CREATE INDEX

lzldb=# alter table tab_idx alter b set not null; --当做复制标识的索引必须是非空唯一索引

ALTER TABLE

lzldb=#  select rel.relname,idx.indisreplident from pg_index idx ,pg_class rel where idx.indexrelid=rel.oid and  relname='idx_1';

 relname | indisreplident

---------+----------------

 idx_1  | f

lzldb=# alter table tab_idx REPLICA IDENTITY using index idx_1; --修改表的复制标识

ALTER TABLE

lzldb=#  select rel.relname,idx.indisreplident from pg_index idx ,pg_class rel where idx.indexrelid=rel.oid and  relname='idx_1';

 relname | indisreplident

---------+----------------

 idx_1  | t

lzldb=# \d tab_idx   --pg_index或者\d查看索引复制标识，\d只能查看显示修改的索引复制标识

                     Table "public.tab_idx"

 Column |         Type          | Collation | Nullable | Default

--------+-----------------------+-----------+----------+---------

 a      | integer               |           |          |

 b      | character varying(10) |           | not null |

Indexes:

    "idx_1" UNIQUE, btree (b) REPLICA IDENTITY

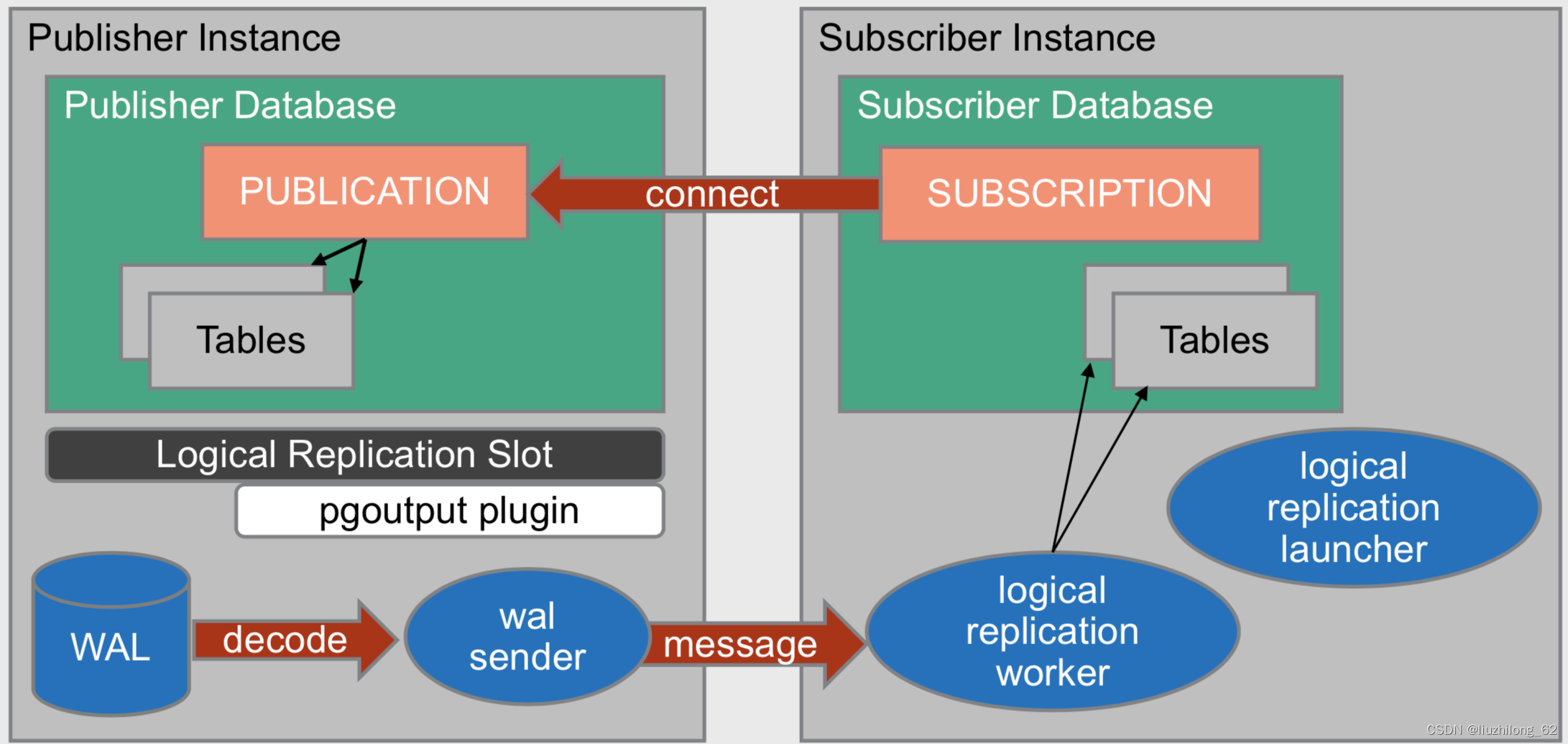

--发布端执行一下命令

lzldb=# create  table tab_full (a int,b varchar(10)); --添加一个无主键和非空索引的表同步

CREATE TABLE

lzldb=# insert into tab_full values(1,'abc');  --插入相同的5条数据

INSERT 0 1

lzldb=# grant select on tab_full to replicate1;

GRANT

lzldb=# alter publication tab_full add table tab_pk;

ALTER PUBLICATION

--

lzlbd=#  alter subscription sub_test refresh publication;

ALTER SUBSCRIPTION



lzlbd=# select ctid,* from tab_full ;

 ctid  | a |  b

-------+---+-----

 (0,1) | 1 | abc

 (0,2) | 1 | abc

 (0,3) | 1 | abc

 (0,4) | 1 | abc

 (0,5) | 1 | abc

lzldb=# delete from tab_full where ctid='(0,2)';

ERROR:  cannot delete from table "tab_full" because it does not have a replica identity and publishes deletes

HINT:  To enable deleting from the table, set REPLICA IDENTITY using ALTER TABLE.

lzldb=# update tab_full set a=2 where ctid='(0,5)';

ERROR:  cannot update table "tab_full" because it does not have a replica identity and publishes updates

HINT:  To enable updating the table, set REPLICA IDENTITY using ALTER TABLE.

--当表的replica identity是d(default)时，没有主键就是nothing。nothing无法复制delete和update。

lzldb=# alter table tab_full replica identity full;

ALTER TABLE

lzldb=# delete from tab_full where ctid='(0,2)';    --复制标识设置为full后，删除成功

DELETE 1

lzlbd=# select ctid,* from tab_full ;     --

 ctid  | a |  b

-------+---+-----

 (0,2) | 1 | abc

 (0,3) | 1 | abc

 (0,4) | 1 | abc

 (0,5) | 1 | abc

lzldb=# update tab_full set a=2 where ctid='(0,5)';

UPDATE 1

lzldb=#  select ctid,* from tab_full;

 ctid  | a |  b

-------+---+-----

 (0,1) | 1 | abc

 (0,3) | 1 | abc

 (0,4) | 1 | abc

 (0,6) | 2 | abc

lzlbd=# select ctid,* from tab_full ;

 ctid  | a |  b

-------+---+-----

 (0,3) | 1 | abc

 (0,4) | 1 | abc

 (0,5) | 1 | abc

 (0,6) | 2 | abc

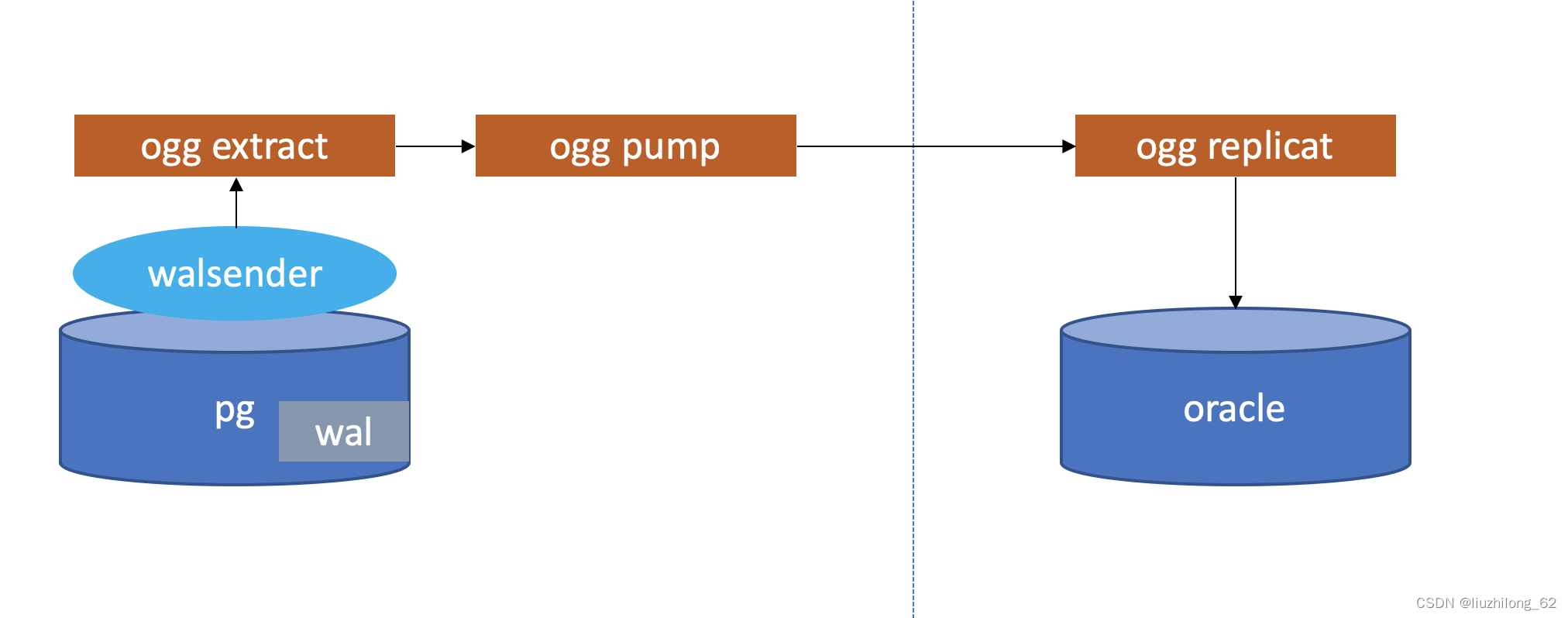

lzldb=# select * from pg_replication_slots where slot_name='ext_pg_5d4b1d39f7494f79';

-[ RECORD 1 ]-------+------------------------

slot_name           | ext_pg_5d4b1d39f7494f79

plugin              | test_decoding --ogg默认使用test-decoding

slot_type           | logical

datoid              | 16385

database            | lzldb

temporary           | f

active              | t   --只要ogg extract是running的，复制槽就是active状态

active_pid          | 3509

xmin                |

catalog_xmin        | 591

restart_lsn         | 0/17F3E38

confirmed_flush_lsn | 0/17F4020

wal_status          | reserved

safe_wal_size       |

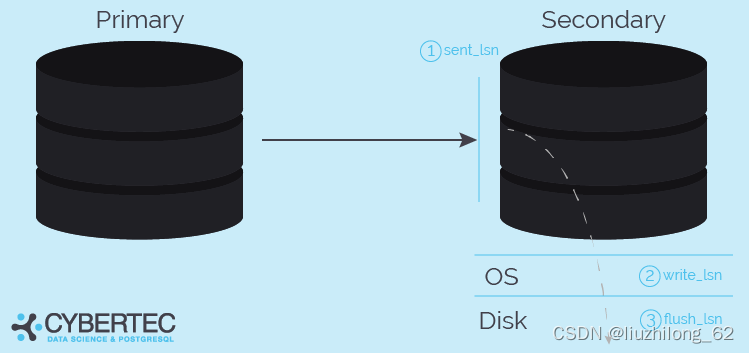

select * from pg_stat_replication

-[ RECORD 2 ]----+------------------------------

pid              | 3509

usesysid         | 10

usename          | pg

application_name |GoldenGateCapture

client_addr      | 127.0.0.1

client_hostname  |

client_port      | 43665

backend_start    | 2023-02-28 15:12:17.350469+08

backend_xmin     |

state            | streaming

sent_lsn         | 0/17F4140

write_lsn        | 0/17F4020

flush_lsn        | 0/17F4020

replay_lsn       |

write_lag        |

flush_lag        |

replay_lag       |

sync_priority    | 0

sync_state       | async

reply_time       | 2023-02-28 16:39:44.986625+08

--replay_lsn没有值

--连lag都没有值

void
SnapBuildSerializationPoint(SnapBuild *builder, XLogRecPtr lsn)
{
if (builder->state < SNAPBUILD_CONSISTENT)
SnapBuildRestore(builder, lsn);
else
SnapBuildSerialize(builder, lsn);
}

SnapBuildSerialize(SnapBuild *builder, XLogRecPtr lsn)
...
sprintf(path, "pg_logical/snapshots/%X-%X.snap",
(uint32) (lsn >> 32), (uint32) lsn);
...
else if (ret == 0)
{
/*
 * somebody else has already serialized to this point, don't overwrite
 * but remember location, so we don't need to read old data again.
 *
 * To be sure it has been synced to disk after the rename() from the
 * tempfile filename to the real filename, we just repeat the fsync.
 * That ought to be cheap because in most scenarios it should already
 * be safely on disk.
 */
fsync_fname(path, false);
fsync_fname("pg_logical/snapshots", true);

builder->last_serialized_snapshot = lsn;
goto out;
}

SnapBuildRestore(SnapBuild *builder, XLogRecPtr lsn)
...
if (builder->state == SNAPBUILD_CONSISTENT)
return false;

sprintf(path, "pg_logical/snapshots/%X-%X.snap",
(uint32) (lsn >> 32), (uint32) lsn);

fd = OpenTransientFile(path, O_RDONLY | PG_BINARY);

postgres=# select slot_name,plugin,slot_type,database,active,restart_lsn from pg_replication_slots where slot_name='logical_test';
 slot_name |  plugin   | slot_type | database | active | restart_lsn
--------------+---------------+-----------+----------+--------+-------------
 logical_test | test_decoding | logical  | lzldb  | f   | 0/1776858

[pg@lzl snapshots]$ ll
total 300
-rw------- 1 pg pg 144 Feb 23 20:410-1776858.snap
-rw------- 1 pg pg 144 Feb 23 20:44 0-1776900.snap
-rw------- 1 pg pg 144 Feb 23 20:45 0-1776938.snap

select pg_drop_replication_slot('logical_test');

[pg@lzl snapshots]$ ll 0-1776858.snap
ls: cannot access 0-1776858.snap: No such file or directory

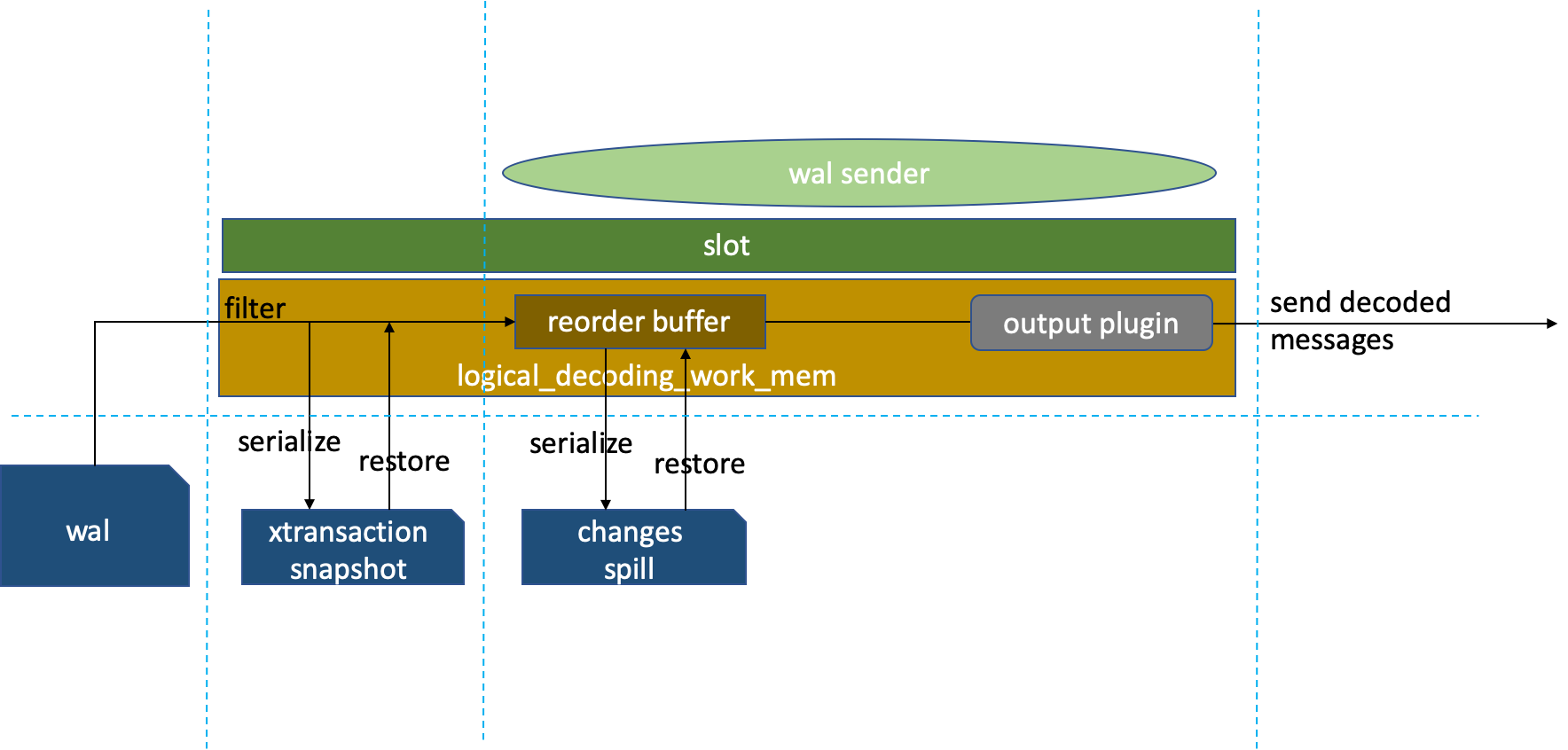

 *          This module gets handed individual pieces of transactions in the order
 *          toplevel transaction sized pieces. When a transaction is completely
 *          reassembled - signaled by reading the transaction commit record - it
 *          will then call the output plugin (cf. ReorderBufferCommit()) with the
 *          individual changes. The output plugins rely on snapshots built by
 *          snapbuild.c which hands them to us.

/*
 * Maximum number of changes kept in memory, per transaction. After that,
 * changes are spooled to disk.
 *
 * The current value should be sufficient to decode the entire transaction
 * without hitting disk in OLTP workloads, while starting to spool to disk in
 * other workloads reasonably fast.
 *
 * At some point in the future it probably makes sense to have a more elaborate
 * resource management here, but it's not entirely clear what that would look
 * like.
 */
int                        logical_decoding_work_mem;
static const Size max_changes_in_memory = 4096; /* XXX for restore only */

/*
 * Spill data of a large transaction (and its subtransactions) to disk.
 */
static void
ReorderBufferSerializeTXN(ReorderBuffer *rb, ReorderBufferTXN *txn)
{
dlist_iter        subtxn_i;
dlist_mutable_iter change_i;
int                        fd = -1;
XLogSegNo        curOpenSegNo = 0;
Size                spilled = 0;

elog(DEBUG2, "spill %u changes in XID %u to disk",
 (uint32) txn->nentries_mem, txn->xid);

/* do the same to all child TXs */
...

/*
 * Given a replication slot, transaction ID and segment number, fill in the
 * corresponding spill file into 'path', which is a caller-owned buffer of size
 * at least MAXPGPATH.
 */
static void
ReorderBufferSerializedPath(char *path, ReplicationSlot *slot, TransactionId xid,
XLogSegNo segno)
{
XLogRecPtr        recptr;

XLogSegNoOffsetToRecPtr(segno, 0, wal_segment_size, recptr);

snprintf(path, MAXPGPATH, "pg_replslot/%s/xid-%u-lsn-%X-%X.spill",
 NameStr(MyReplicationSlot->data.name),
 xid,
 (uint32) (recptr >> 32), (uint32) recptr);
}

/*
 * Restore a number of changes spilled to disk back into memory.
 */
static Size
ReorderBufferRestoreChanges(ReorderBuffer *rb, ReorderBufferTXN *txn,
TXNEntryFile *file, XLogSegNo *segno)
{
Size                restored = 0;
XLogSegNo        last_segno;
...
while (restored < max_changes_in_memory && *segno <= last_segno)
{
int                        readBytes;
ReorderBufferDiskChange *ondisk;

...
/*
 * Read the statically sized part of a change which has information
 * about the total size. If we couldn't read a record, we're at the
 * end of this file.
 */
ReorderBufferSerializeReserve(rb, sizeof(ReorderBufferDiskChange));
readBytes = FileRead(file->vfd, rb->outbuf,
 sizeof(ReorderBufferDiskChange),
 file->curOffset, WAIT_EVENT_REORDER_BUFFER_READ);
...
/*
 * ok, read a full change from disk, now restore it into proper
 * in-memory format
 */
ReorderBufferRestoreChange(rb, txn, rb->outbuf);
restored++;
}

return restored;
}

static void
ReorderBufferRestoreChange(ReorderBuffer *rb, ReorderBufferTXN *txn,
   char *data)
{
...
/*
 * Update memory accounting for the restored change.  We need to do this
 * although we don't check the memory limit when restoring the changes in
 * this branch (we only do that when initially queueing the changes after
 * decoding), because we will release the changes later, and that will
 * update the accounting too (subtracting the size from the counters). And
 * we don't want to underflow there.
 */
ReorderBufferChangeMemoryUpdate(rb, change, true,
ReorderBufferChangeSize(change));
}
